Best Quality KTAG V2.13 K-TAG ECU Programming Tool HW V6.070 with all software K TAG 2.13 K-TAG ECU Programming Tool

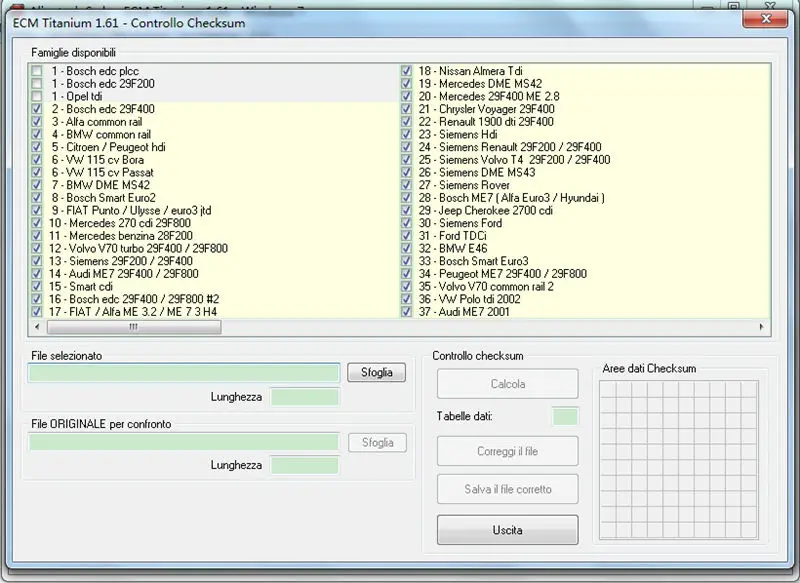

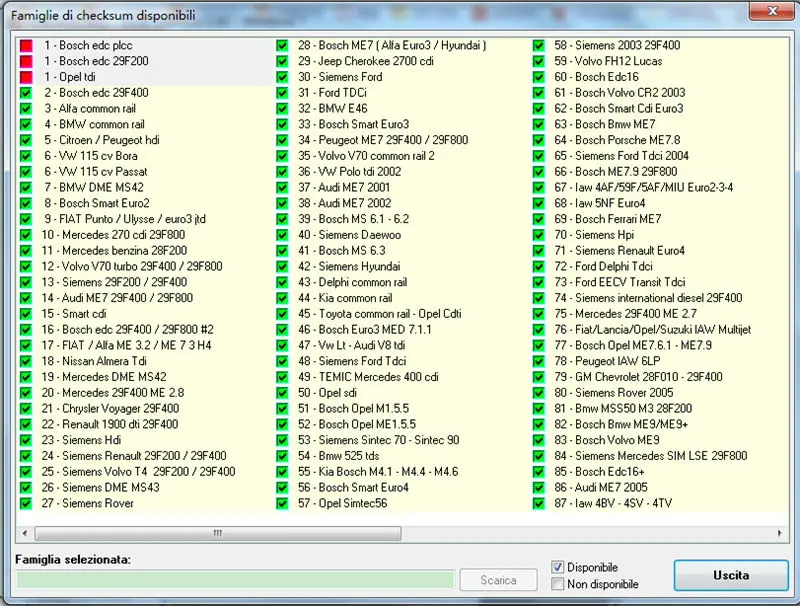

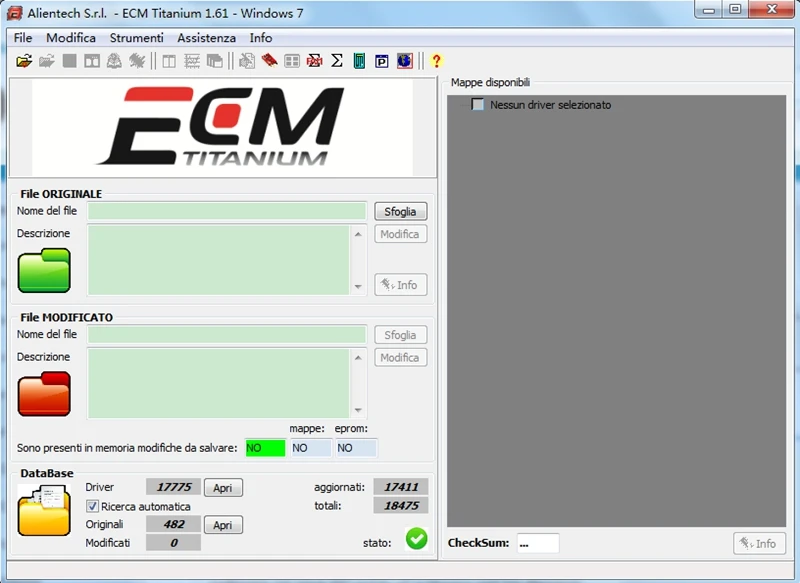

Add ECM_TITANIUM_161 programmer as GIFT

KTAG Master Version ECU Programming Tool with Multi-Language

Supports Car&Trucks

Description:

K-TAG ECU Programming Tool is designed entirely around the needs of our customers to be more responsive and reliable. A true champion of innovation, K-TAG introduces another brand new novelty to Alientech world: J-Tag communication for Asian vehicles.

Available Protocols for K-TAG: BDM MOTOROLA MPC5xx

Support BDM Function Well, No Checksum Error

Support both Car, Truck ECU Programming

KTAG Advantage:

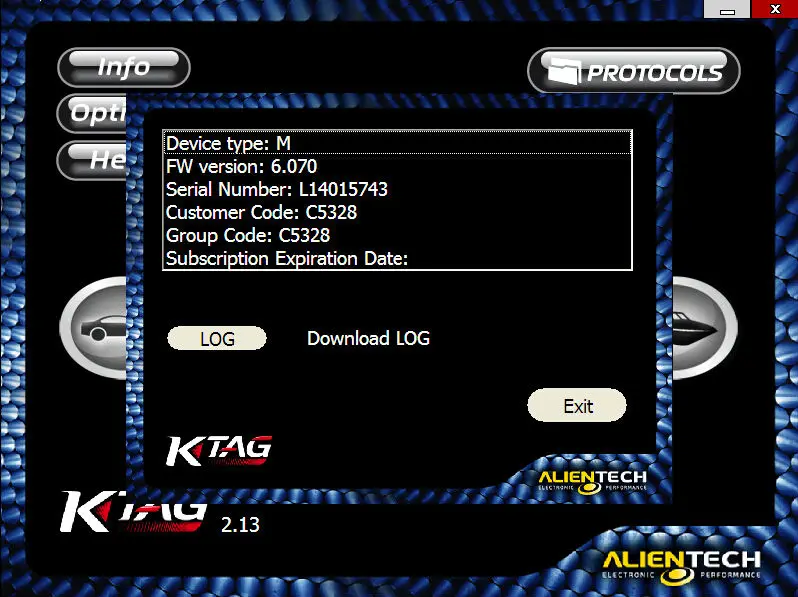

Software Version:V2.13  Hardware Version:V6.070

No Tokens Limited,Unlimited Version

PC Supportes: Windows XP Professional/Win7 (32Bits Only)(Close anti-virus program)

Update:By CD or Download link only

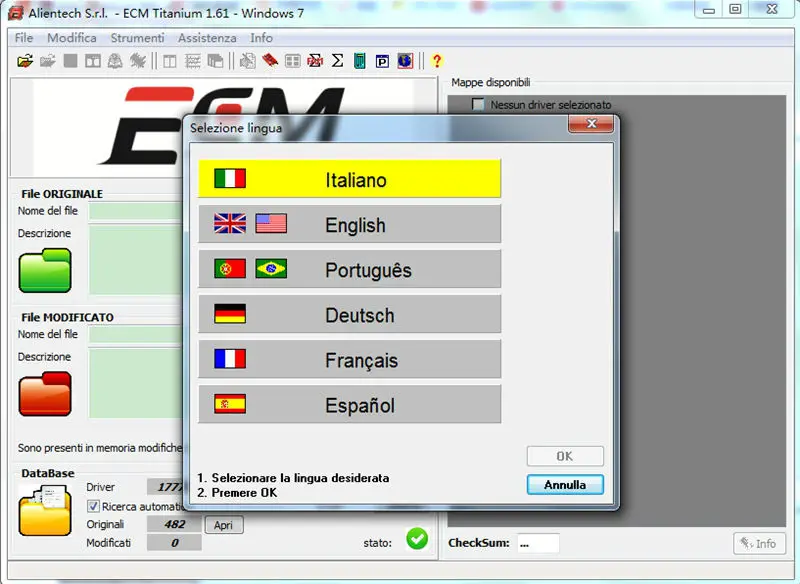

Langugaes: Italian Deutsch English French Portuguese Spanish

Important Note Tips:

1.Please DON'T update the KTAG , it will damage the Unit can not use any more .(Only send back repair)

2. Disconnect your computer internet when run software.Otherwise Unit will be locked.

3.MUST connect device to PC and Power On with car at same time When install software.

Features:

The new K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices. Using only the essential components, Alientech have merged J-Tag, Motorola BDM/Nexus and Bootloader FOR Mitsubishi/Infineon Tricore/ST communication lines into a single product.

K-TAG works in perfect harmony. Learn how to use K-TAG takes almost no time, because all the communication protocols operate along similar principles. Once you have learned to use a protocol, you will naturally use all the others. Alientech knows what it means to work in motion. For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.

Unlike many ECU programming tools, with K-TAG you have at your disposal only the applications you really need. Once you have the hardware, you can choose which group of protocols to enable and then start working. In this page you can find a complete list of the ECU currently supported by K-TAG.

Just as the full range of Alientech programmers, K-TAG is available both in Master and Slave version. This way, Slave user can rely on the larger network of Master in the chiptuning field.The only thing that K-TAG does not do: OBD Communication. But for that you can count on KESSv2.

To use K-Tag at best on any kind of Electronic Control Unit, Alientech offers you a wide range of special adapters, to be soldered on the ECU or to be used on the positioning frame.

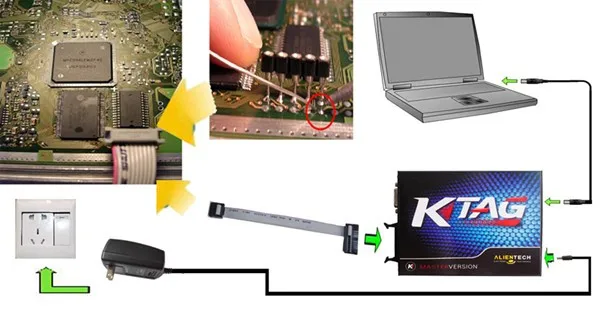

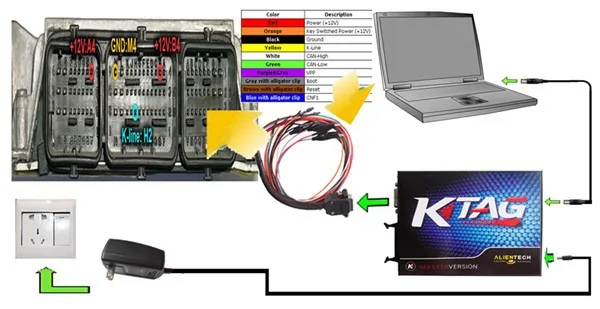

KTAG Connection Picture Display

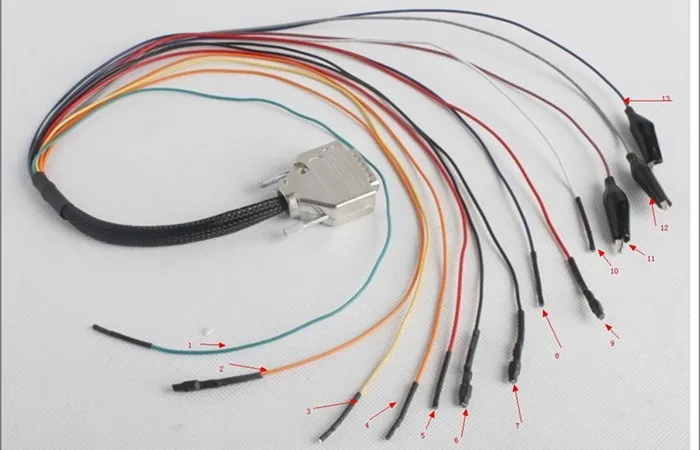

Cables From Left to Right:

1.GREEN-CAN L

2.ORANGE-VKEY
3.YELLOW-K LINE
4.ORANGE-VKEY
5. RED-VECU
6.BLACK-GND
7.BLACK-GND
8.PURPLE-VPP
9.RED-VECU
10.WHITE-CAN H
11.BROWN-RESET
12.GRAY-BOOT
13.BLUE-CNF1

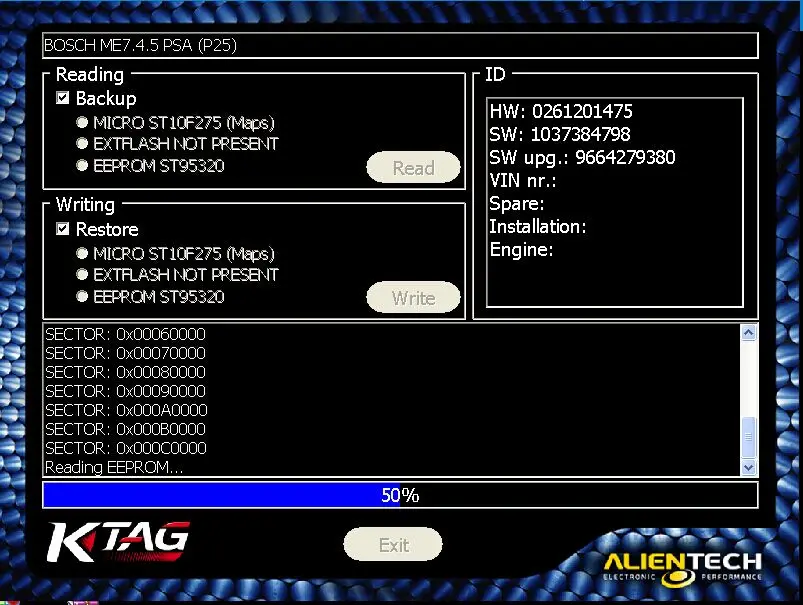

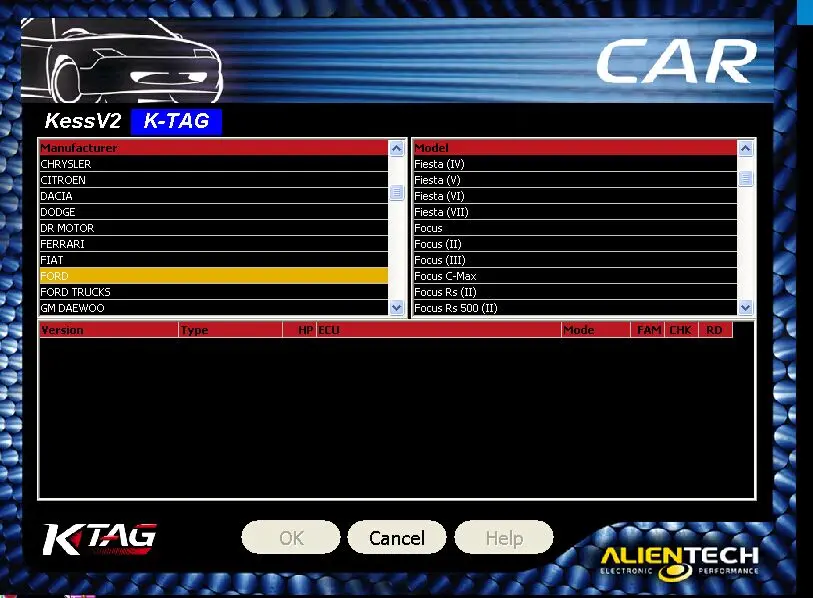

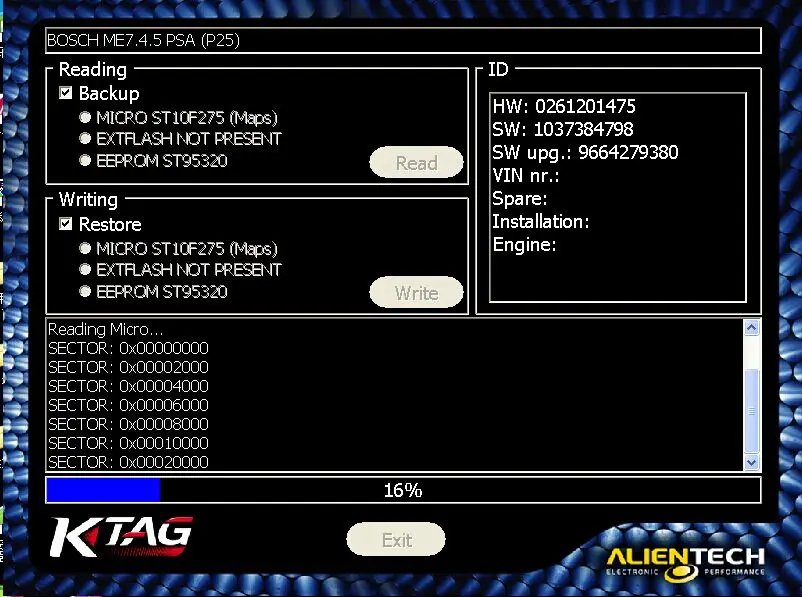

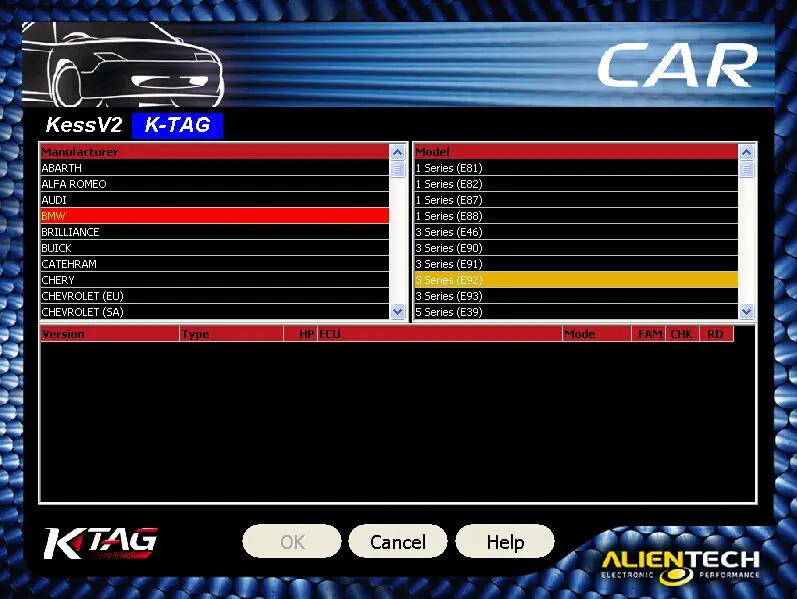

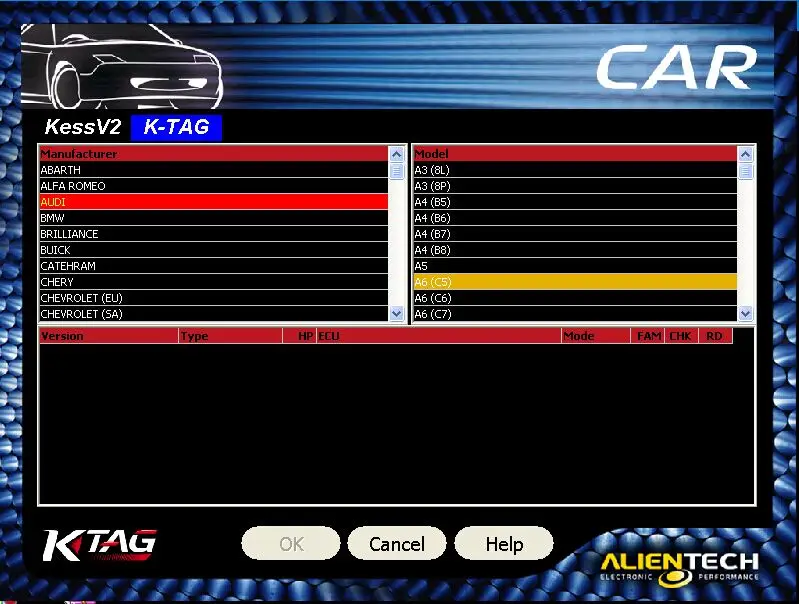

Software Display:

Package List:

1 x KTAG Main Unit

1 x 144300T 100 IDC 26-10

1 x 144300T 101 IDC 26-14

1 x 144300T 102 IDC 26-16

1 x 144300T 103 IDC 26-26

1 x 144300T 104 IDC 26-10

1 x 144300T 105  IDC 26-16

1 x 144300T 106 IDC 26-26

3 x Programming Chips

1 x Multi-Color Cable

1 x USB Cable

1 x Power Adapter

1 x CD
